GoPro HD Surf Hero

Features

GoPro’s HD Surf HERO is the world’s only 1080p HD on-board video and still photo camera. Professional quality 1080p / 960p / 720p HD resolutions record at 30 and 60 frames per second (60 fps in 720p). Easily mounts to any surfboard in seconds. So light, even top pros claim they don't notice the camera on their boards.

The HD Surf HERO can also shoot 5MP photos automatically every 2 seconds while you surf. With the simple press of the shutter button on the paddle out you can capture photos during your entire surf. Other photo modes include 5 / 10 / 30 / and 60 second time lapse as well as single shot, triple shot, and self timer modes.

The batteries last for over 2.5 hours of HD video or automatic photo taking, so you can document your entire surf with a single push of the shutter button on the paddle out.

The included adhesive base mounts in seconds and is proven in heavy surf from Hawaii to Tahiti, Southern Mexico to Northern California. Or you can install an FCS™ fin plug into the deck of your board and then use our patent pending camera mounting plug to allen key your HD Surf HERO into the FCS™ plug.

Lighten your load on your next trip and use the HD Surf HERO for your non-surf related photos and videos, too. Optional accessories make it easy to mount the camera on your wrist, bike, scooter, jet ski or helmet. Tow surfing? A chest harness is available for that, too.

Waterproof to 180’ / 60m and protected from rocks and other hazards thanks to its removable polycarbonate housing.

Specifications

Camera Optics

Lens Type: Fixed Focus (2ft/.6m – ∞), glass
Aperture: f/2.8 (high performance in low-light situations)
Angle of View: 170º ultra wide angle in WVGA, 720p, or 960p mode
Angle of View: 127º wide angle in 1080p mode

Video

HD Video Resolution Modes: (subject to change, pending final firmware release)
- 1080p = 1920x1080 pixels (16:9), 30 fps, 15 Mbit/s data rate
- 960p = 1280x960 pixels (4:3), 30 fps, 12 Mbit/s data rate
- 720p = 1280x720 pixels (16:9), 60 fps, 15 Mbit/s data rate
- 720p = 1280x720 pixels (16:9), 30 fps, 8 Mbit/s data rate
- WVGA = 848x480 pixels (16:9), 60 fps, 8 Mbit/s data rate
Sensor Type: 1/2.5" HD CMOS, 2.2µm-sized pixels
Light Sensitivity: Super low-light sensitivity (>1.4 V/lux-sec)
Video Format: H.264 compression, saved as Windows- & Mac-compatible MPEG4 (.mp4) file
Exposure Control: Auto with user selectable center weighted average and spot metering settings
White Balance: Auto

Audio

Microphone: Built-in, mono with AGC (automatic gain control)
Audio Format: 48 kHz, AAC audio compression


Resolution: 5 megapixel
Capture Modes: Single shot, photo every 2, 5, 10, 30 or 60 secs.; 3 photo burst; self-timer

Storage

Memory: SD card, up to 32GB capacity (SDHC)
Average recording times (using 32GB SD card):
- 1080p (30 fps): 4h 21m
- 960p (30 fps): 5h 26m
- 720p (60 fps): 4h 21
- 720p (30 fps): 8h 09m
- WVGA (60 fps): 8h 09m

Camera Connectors & Cables

PC Connection: USB 2.0 (data connection and battery charging)
HDTV Out: HD NTSC & PAL (component cable incl.)
Audio Out: Combo 2.5mm jack with stereo audio and composite video out
PC Compatibility: Windows® XP (Service Pack 2 or later) or Vista; Mac OS® X 10.4.11 and later

Power & Battery

Battery Type: Rechargeable 1100 mAh lithium-ion
Battery Life: Approx. 2.5 hrs
Charging: via USB to computer or optional power adapter
Charge Time: 80% capacity after 1 hour with optional power adapter; or 2 hours with a computer’s USB port

Waterproof Camera Housing

Depth Rating: Up to 180 feet / 60 meters
Construction: Polycarbonate and stainless steel
Hardware: Stainless steel

Size & Weight

Dimensions (H x W x D): 1.6” x 2.4” x 1.2” (42mm x 60mm x 30mm)
Weight: 3.3oz (94g) incl. battery, 5.9oz (167g) incl. housing

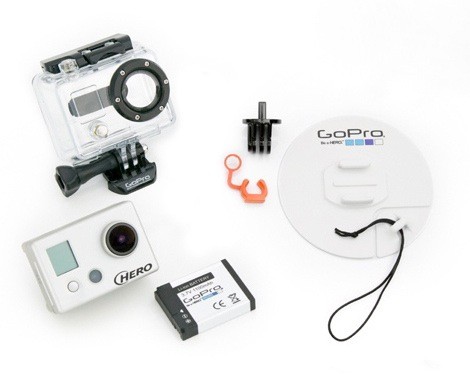

Items Included

1 HD HERO Camera (5 megapixel)
1 Rechargeable 1100 mAh Lithium-Ion Battery
1 Waterproof Quick-Release Housing (180’/60 m)
1 3M™ Adhesive Mounting Base
1 FCS™ Plug-Compatible Mount
1 Quick-Release Buckle
1 Leash
1 USB Cable
1 Component Video (HDTV) Cable
1 Composite Video + Audio Out Cable
Warranty: One Year
